Features & Applications:

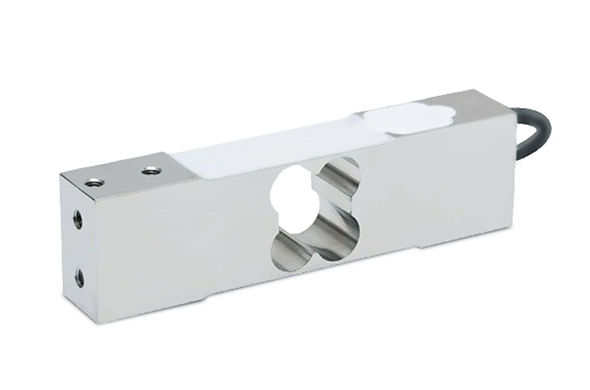

1. Stainless steel material, strong stability;
2. High precision and strong anti-eccentric load capability;
3. Easy to install, IP67;
4. Suitable for electronic scale, counter scale, electronic balance and industrial weighing system.
Technical Parameter
Specifications | Technique |
Capacity | 3,5,7.5,15,20,30,50kg,75,100,150,200kg |
Accuracy class | C3 |
Rated output | 2.0±10%mV/V |
Zero balance | ±2%F.S. |
Non-linearity | 0.0166%F.S. |
Hysteresis | 0.0166%F.S. |
Repeatability | 0.02%F.S. |
Creep(30min) | 0.017%F.S. |
Temp.effect on output | 0.017%F.S./10℃ |
Temp.effect on zero | 0.02%F.S./10℃ |
Input impedance | 420±20Ω |
Output impedance | 350±10Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5~15V |
Maximum excitation | 20V |
Compensated temp range | -10~40℃ |
Operation temp range | -10~50℃ |
Safe overload | 150%F.S. |
Ultimate overload | 300%F.S. |
Cable size | Φ5.2×1600mm |
Material | Stainless Steel |
IP Class | IP67 |
Max.platform size | 600mm×500mm |
