Description:

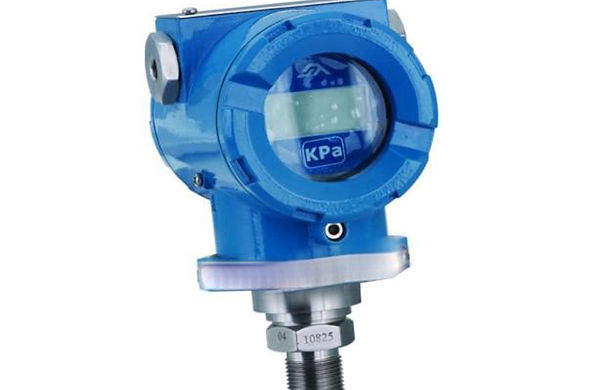

ZER600 series use high accuracy, high stability sensor with mature and exquisite packaging technology and assembly, with high reliability back-end amplification circuit, converting the measured medium pressure into standard electrical signal output.
Technical Parameter
Parameter | Value |
Measure Media | CNG、LNG、other media compatible with 304 stainless steel |
Pressure Range | 0~60MPa (minimum 0~5KPa) |
Combine Accuracy | ±0.25% FS,±0.5% FS,±1.0% FS |
Smart | ±0.1% FS、±0.25% FS, ±0.5% FS |
Operating Voltage | 14~36VDC, standard 24VDC±5% ripple< 1% |
Smart | 12~36VDC (17VDC for digital display type) |
Output | 4 ~20mA(2-wire), 0~5VDC or customized |
Medium Temperature | -10~70℃ |
Temperature Effect | ±0.5% FS(0.1 grade) |
Stability | ±0.25%FS/Y, Smart:±0.1% FS/Y |
Pressure Over-loaded | 2 X |
