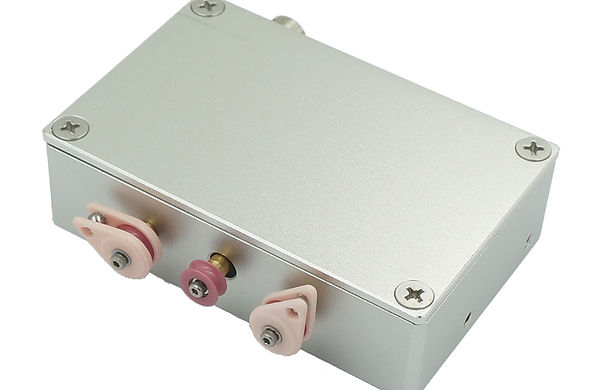

Features & Applications:
1. Made of aluminum alloy;
2. High accuracy with strong anti-deflective loading;
3. Easy to install with IP65 protection;
4. Mainly used for measuring and controlling of tension force of wires.
Technical Parameter
Specifications | Technique |
Capacity | 100g,200g,500g,1kg, 2 kg |
Accuracy class | C3 |
Rated output | 1.0±10%mV/V（300g,500g）,2.0±10%mV/V(1~5kg) |
Zero balance | ±2%F.S. |
Non-linearity | 0.05%F.S. |
Hysteresis | 0.05%F.S. |
Repeatability | 0.05%F.S. |
Creep(30min) | 0.03%F.S. |
Temp.effect on output | 0.03%F.S./10℃ |
Temp.effect on zero | 0.03%F.S./10℃ |
Input impedance | 380±40Ω |
Output impedance | 380±40Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5~15V |
Maximum excitation | 20V |
Compensated temp range | -10~40℃ |
Operation temp range | -25~70℃ |
Safe overload | 150%F.S. |
Ultimate overload | 300%F.S. |
Cable size | Φ4×400mm |
Weight approx. | 0.1kg |
Material | aluminum alloy |
IP Class | IP65 |
Max.platform size | 200mm×200mm |
