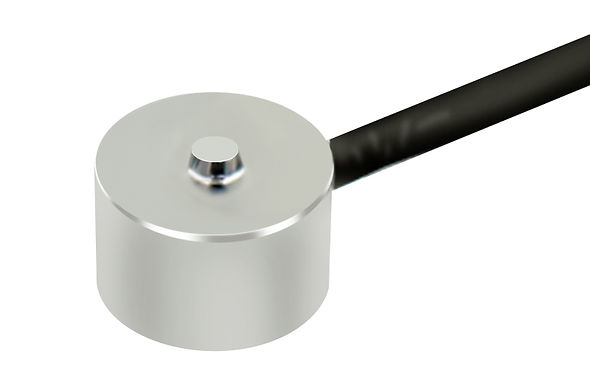

ZER-ST105

Compression Load Cell

Load Cells

Quote

Features & Applications:

1. Low profile，small deflection and mini dimension;

2. Made of stainless steel;

3. IP67 protection, customizable;

4. High temperature could be customized for injection molding, extrusion and other manufacturing processes;

5. Suitable for Automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system;

6. High dynamic response frequency.

Technical Parameter

Specifications	Technique
Capacity	20,50,100,200, 300, 500N
Rated output	1.0±20%mV/V
Zero balance	±0.05mV/V
Non-linearity	0.5%F.S.
Hysteresis	0.5%F.S.
Repeatability	0.5%F.S.
Creep(30min)	0.2%F.S.
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
Input impedance	600~800Ω
Output impedance	600~800Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5~12V
Maximum excitation	15V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	300%F.S.
Cable size	φ2×4000mm
Weight approx.	0.1kg
Material	Stainless Steel
IP Class	IP66
