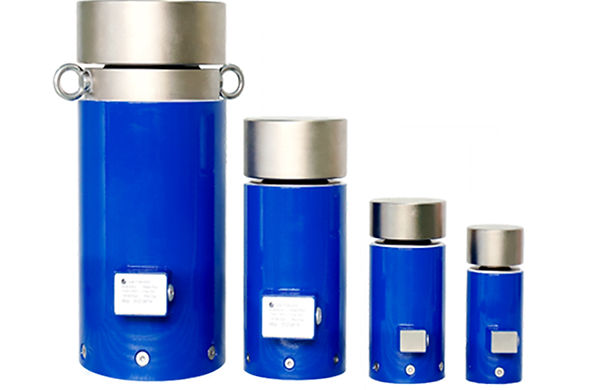

Nominal (rated) forces: 50kN,100kN, 200 kN, 300kN, 500 kN, 1MN,2MN, 5 MN, 10 MN, 20MN,50MN
Compact size, Low weight.
Technical Parameter
Specifications | Technique |
Capacity | 50,100,200,500,1000,2000,3000,5000, 10000, 20000, 50000 kN |
Rated output | ~2.0mV/V |
Zero balance | ±1%F.S. |
Non-linearity | 0.02%,0.05%,0.1%,0.3% F.S. |
Hysteresis | 0.02%,0.05%,0.1%,0.3% F.S. |
Repeatability | 0.02%,0.05%,0.1%,0.3% F.S. |
Creep(300min) | 0.02%,0.05%,0.1%,0.3% F.S. |
Temp.effect on output | 0.05%F.S./10℃ |
Temp.effect on zero | 0.05%F.S./10℃ |
Input impedance | 760±20Ω |
Output impedance | 700±10Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5V |
Maximum excitation | 15V |
Compensated temp range | -10~60℃ |
Operation temp range | -30~70℃ |
Safe overload | 150%F.S. |
Ultimate overload | 300%F.S. |
Cable size | φ5.4×6000mm |
Material | Alloy steel & stainless steel |
IP class | IP67 |
